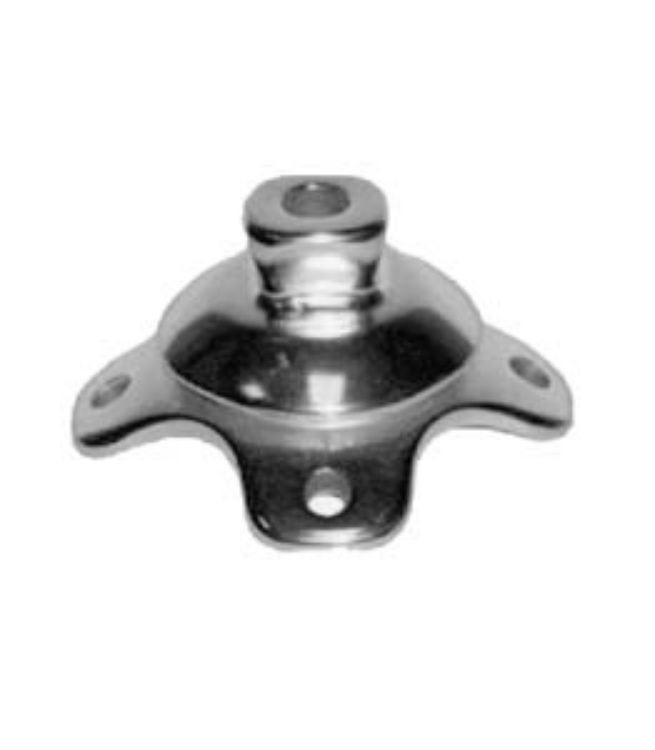

This connector is called Stainless Steel 4-Ear Connector. It is used to attach a transtibial socket and comes with a cover for lamination. It can support up to 275lbs/125kg and weighs only 94g. Plus, it has a 2-year warranty.
The 4-Ear Connector made of Stainless Steel. Simplifies the process of creating a transtibial socket during lamination. This simplifies the manufacturing process and saves time.
Each 4-Ear Connector is equipped with a protective lamination cover. Which ensure durability and added protection.
The product comes with a 2-year warranty that assures both users and manufacturers. This warranty provides peace of mind to all parties involved.
The connector for the prosthetic device only weighs 94g. This lightweight feature ensures the user's comfort and mobility.
The connector is suitable for users with different body types. As it can support up to 275lbs/125kg in weight.
The Double Ended Sliding Adapter links two prosthetic parts using pyramid adapters. It lets you adjust sideways or up and down. The socket and pyramid adapter of this prosthesis allow up to 13mm of sliding movement even while in use.
The titanium 30mm sliding tube clamp adapter is a tool that helps adjust the prosthetic socket and tube adapter . It allows fine adjustments to the position of the distal part without affecting the pyramid's angle change. This tool is designed to make those adjustments easier for you. The product comes with a one-year warranty, weighs 185g, and can support up to 220 lbs/100kg.
The Titanium Double Ended Adapter is made of titanium and stainless steel. It has two pyramid receivers at both ends with a height of 75mm. It is adjustable, even in tight spaces. The adapter has a 2-year warranty and can support up to 300lbs/136kg while weighing only 88g.
This Titanium Double Ended Adapter is an adjustable tool that can fit in tight spaces. It has pyramid receivers on both ends and stands at a height of 45mm. It is lightweight, weighing only 67g, but can support up to 300lbs/136kg. It also comes with a 2-year warranty.
This is an Aluminum 4 Hole Connector Pyramid that stays in place and can be attached to any socket or knee with a 4-hole pattern. You'll need four flat head screws to attach it. The pyramid comes with a 2-year warranty and weighs 64g. It can hold up to 275lbs/125kg.
Stainless Steel 4 Hole Connector Pyramid is made for building Trulife limb systems. It lets you adjust angles by ±8°. It comes with a 2-year warranty. It weighs 105g and can hold up to 275lbs/125kg.
If you're looking for a simple way to attach your transtibial socket, the Titanium 4 Ear Connector might be just what you need. It's easy to use and comes with a cover that makes lamination even more straightforward. The connector is strong too, with a weight capacity of up to 350 lbs (159kg). You can trust its quality, as it also comes with a 2-year warranty. The connector weighs 60.5g, so it's light enough to be comfortable as well.
This metal connector has four holes and a smooth surface that can be turned to different angles. It stays in place even when the fasteners are removed, and can support up to 350lbs/159kg. It weighs 55.5g and comes with a two-year warranty.
