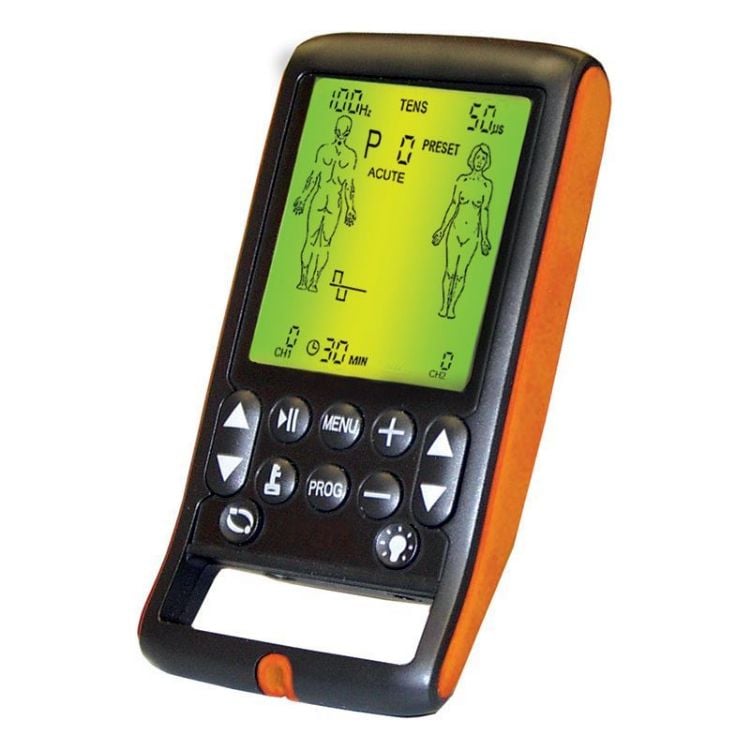

StimTec Plus TENS/EMS

The StimTec Plus comes with a box that contains everything that a patient needs to get started.

Features:

• Easy to use
• Electrode placement guide included
• Rechargeable lithium battery

Specifications:

Dual Channel, Isolated

Targeted TENS Programs:

NECK PAIN
LOW BACK PAIN
SCIATICA
ELBOW PAIN
WRIST PAIN
KNEE PAIN (Chronic & Acute)
ANKLE PAIN
HIP PAIN
MENSTRUAL CRAMPS
MIGRAINE
TORTICOLLIS

Targeted EMS programs:

TRICEPS
LATISSIMUS DORSI
SPINALIS MUSCLES
GLUTEUS
HAMSTRINGS
CALVES
BREAST
ABDOMEN
ABDOMEN+WAIST
QUADRICEPS
THIGHS

TENS:

Program 0-13 --- TENS Preset programs
Program 14-21 --- TENS Manual programs
Intensity: 0-150mA zero to peak at 500ohm load
Frequency 1-150 Hz
Pulse width: 50, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150, 160, 170,
180,190, 200, 210, 220, 230, 240, 250μs
Waveforms: Symmetrical bi-phase rectangular,
Asymmetrical bi-phase rectangular, Mono-phase rectangular
Treatment timer: Continuous, 15, 30, 45, 60, 90min

For EMS treatment:

Program 22-31 --- EMS Preset programs
Program 32, 33 --- EMS Manual programs
Intensity: 0-150mA zero to peak at 1000ohm load
Frequency: 1-120 Hz
Pulse width: Positive phase: 50-400μs, in steps of 50μs
Waveforms: Symmetrical Bi-Phasic rectangular, Alternated Bi-Phasic rectangular
Ramp up time: 0-5s in steps of 1s
Ramp down time: 0-5s in steps of 1s
On time: 1-60s in steps of 1s
Off time” 0-60s in steps of 1s
Treatment timer: Continuous, 10, 20, 30, 45, 60, 90min

Not CSA Approved

The Unit comes with:

• 1 StimTecPLUS
• Lithium battery
• Battery charger
• 4 electrodes
• 2 Lead Wires
• Carry Case
• User guides
• Belt clip
