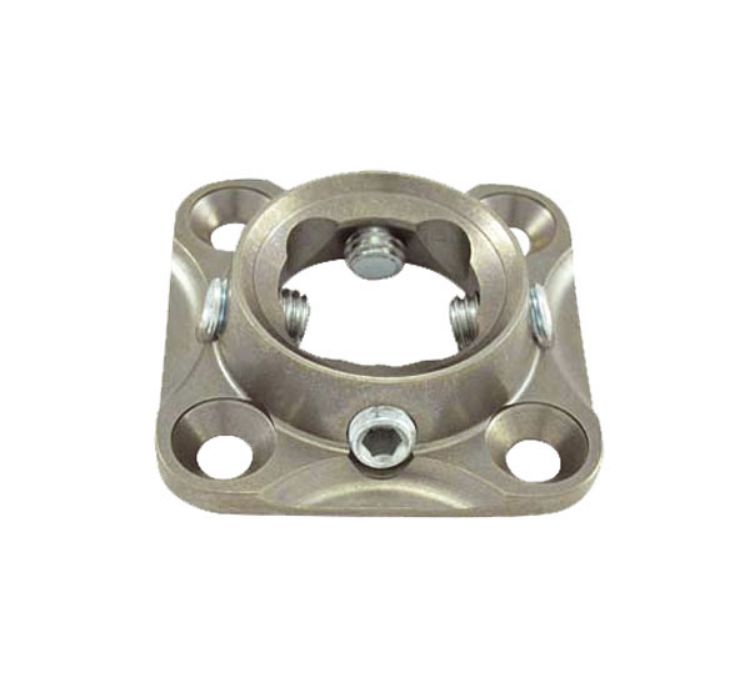

4-Hole Connector, Receiver offers a reliable and versatile solution for connecting to 4-hole thread systems and pyramid connections. Its lightweight titanium construction and generous weight limit make it suitable for a wide range of applications, while the included set screws and flat head screws allow for precise alignment and secure connections.
Designed to seamlessly connect with any 4-hole thread system and pyramid connection, ensuring versatile usage across various equipment setups.
Utilizes four flat head screws for robust attachment to the 4-hole connector, providing a stable and reliable connection for equipment.
Incorporates four set screws dedicated to anchoring the pyramid system, enhancing stability and preventing slippage during use.
Offers the flexibility of angular adjustment for precise alignment, ensuring optimal positioning and functionality of connected equipment.
Crafted from titanium, renowned for its exceptional strength-to-weight ratio, ensuring durability and longevity even under demanding conditions.
Weighing only 65 grams, the connector provides minimal added weight, ideal for applications where weight is a concern without compromising on strength or reliability.
With a weight limit of 100 kg, the connector offers ample support for a wide range of equipment and user needs, ensuring safety and stability during use.
Alignment adjustment set screw torque recommendation of 15 Nm ensures proper tightening without risk of damage, facilitating easy setup and maintenance.
Application of Loctite to all screws after alignment and connection ensure a secure and lasting fastening, minimizing the risk of loosening over time and maintaining equipment integrity.
Aluminum 4-Ear Connector is designed for easy lamination into a transtibial socket with a one-step process. Each connector comes with a lamination cover. It's made from a combination of forged and machined aluminum. Making it both strong and lightweight.
This is an Aluminum 4 Hole Connector Pyramid that stays in place and can be attached to any socket or knee with a 4-hole pattern. You'll need four flat head screws to attach it. The pyramid comes with a 2-year warranty and weighs 64g. It can hold up to 275lbs/125kg.
This adapter allows for sliding change of up to 13mm between two prosthetic components with pyramid adapters. It can be used for medial or lateral change in the frontal plane, and dorsal or ventral change in the sagittal plane. The adapter is designed to worn with the prosthetic socket and pyramid adapter and is easy to adjust.
Offset Rotating Pyramid allows for easy adjustments to shift or rotate as required. This helps in aligning prosthetics without adding much weight or changing the prosthetic socket.
Rotatable Pyramid is designed for flexibility, offering many positions with an easy-to-use interface. It stays in place even when you remove the fasteners. It weighs 110 grams and can support up to 125 kg. Made of titanium, it's durable. For adjustments, tighten the Alignment Adjustment Set Screw to 15 Nm.
Stainless Steel 4-Ear Connector is a convenient option for attaching a transtibial socket. Each connector comes with a cover for lamination. Made from durable stainless steel alloy, the 1220S is both sturdy and lightweight. Plus, it's backed by a 2-year warranty. It weighs 94g and can support up to 275lbs/125kg.
Stainless Steel 4 Hole Connector Pyramid is made for building Trulife limb systems. It lets you adjust angles by ±8°. It comes with a 2-year warranty. It weighs 105g and can hold up to 275lbs/125kg.
