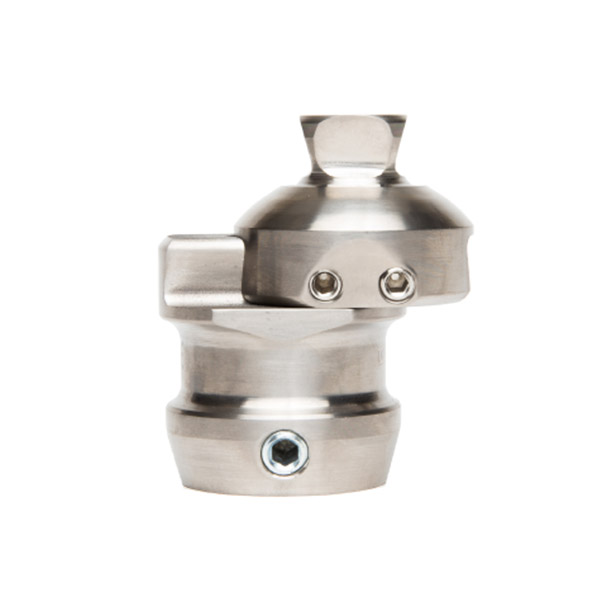

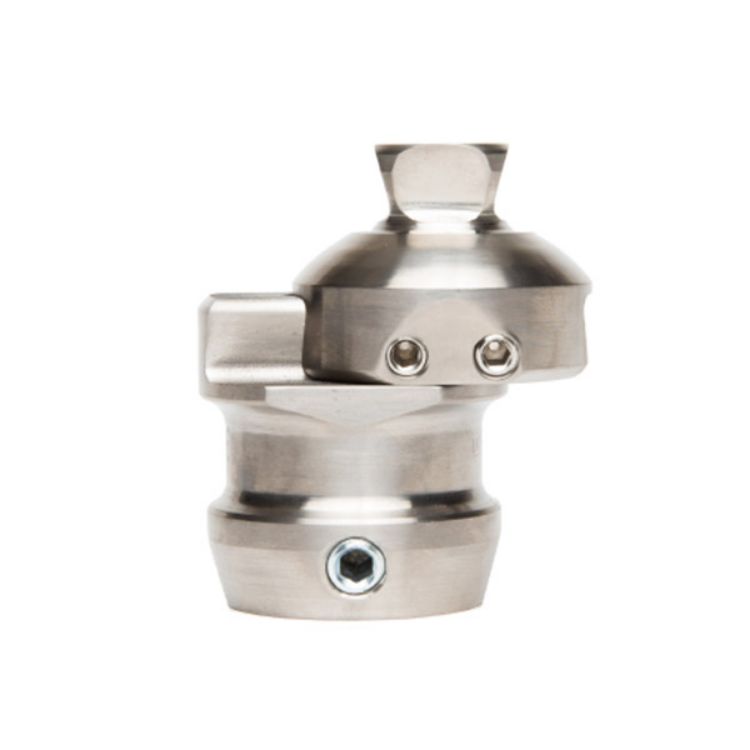

Double Ended Sliding Adapter with Pyramid make you adjust your prosthetic socket and pyramid adapter by up to 13mm . It links two prosthetic parts with pyramid adapters. Allowing for side-to-side or front-to-back adjustments.
The adapter has two ends, facilitating connection between prosthetic components with pyramid adapters.
Offers up to 13mm of sliding change while the prosthesis is being worn.
Compatible with pyramid adapters, ensuring seamless integration with existing prosthetic components.
Enables change in the frontal plane. Allows for medial or lateral movement to optimize alignment and comfort.
Provides dorsal or ventral change in the sagittal plane. It accommodates variations in gait and posture.
Allows adjustments to meet the unique needs and preferences of the prosthetic user. It enhance comfort and mobility.
Facilitates optimal alignment of the prosthetic components. Aligment provides stability and efficient movement.
This is an Aluminum 4 Hole Connector Pyramid that stays in place and can be attached to any socket or knee with a 4-hole pattern. You'll need four flat head screws to attach it. The pyramid comes with a 2-year warranty and weighs 64g. It can hold up to 275lbs/125kg.
This adapter allows for sliding change of up to 13mm between two prosthetic components with pyramid adapters. It can be used for medial or lateral change in the frontal plane, and dorsal or ventral change in the sagittal plane. The adapter is designed to worn with the prosthetic socket and pyramid adapter and is easy to adjust.
Stainless Steel 4-Ear Connector is a convenient option for attaching a transtibial socket. Each connector comes with a cover for lamination. Made from durable stainless steel alloy, the 1220S is both sturdy and lightweight. Plus, it's backed by a 2-year warranty. It weighs 94g and can support up to 275lbs/125kg.
Stainless Steel 4 Hole Connector Pyramid is made for building Trulife limb systems. It lets you adjust angles by ±8°. It comes with a 2-year warranty. It weighs 105g and can hold up to 275lbs/125kg.
If you're looking for a simple way to attach your transtibial socket, the Titanium 4 Ear Connector might be just what you need. It's easy to use and comes with a cover that makes lamination even more straightforward. The connector is strong too, with a weight capacity of up to 350 lbs (159kg). You can trust its quality, as it also comes with a 2-year warranty. The connector weighs 60.5g, so it's light enough to be comfortable as well.
This metal connector has four holes and a smooth surface that can be turned to different angles. It stays in place even when the fasteners are removed, and can support up to 350lbs/159kg. It weighs 55.5g and comes with a two-year warranty.
Trulife 4 Hole Rotatable Male Pyramid Inserts are used for the endoskeletal construction of Trulife limb systems. It provides ±8° angular adjustment.
